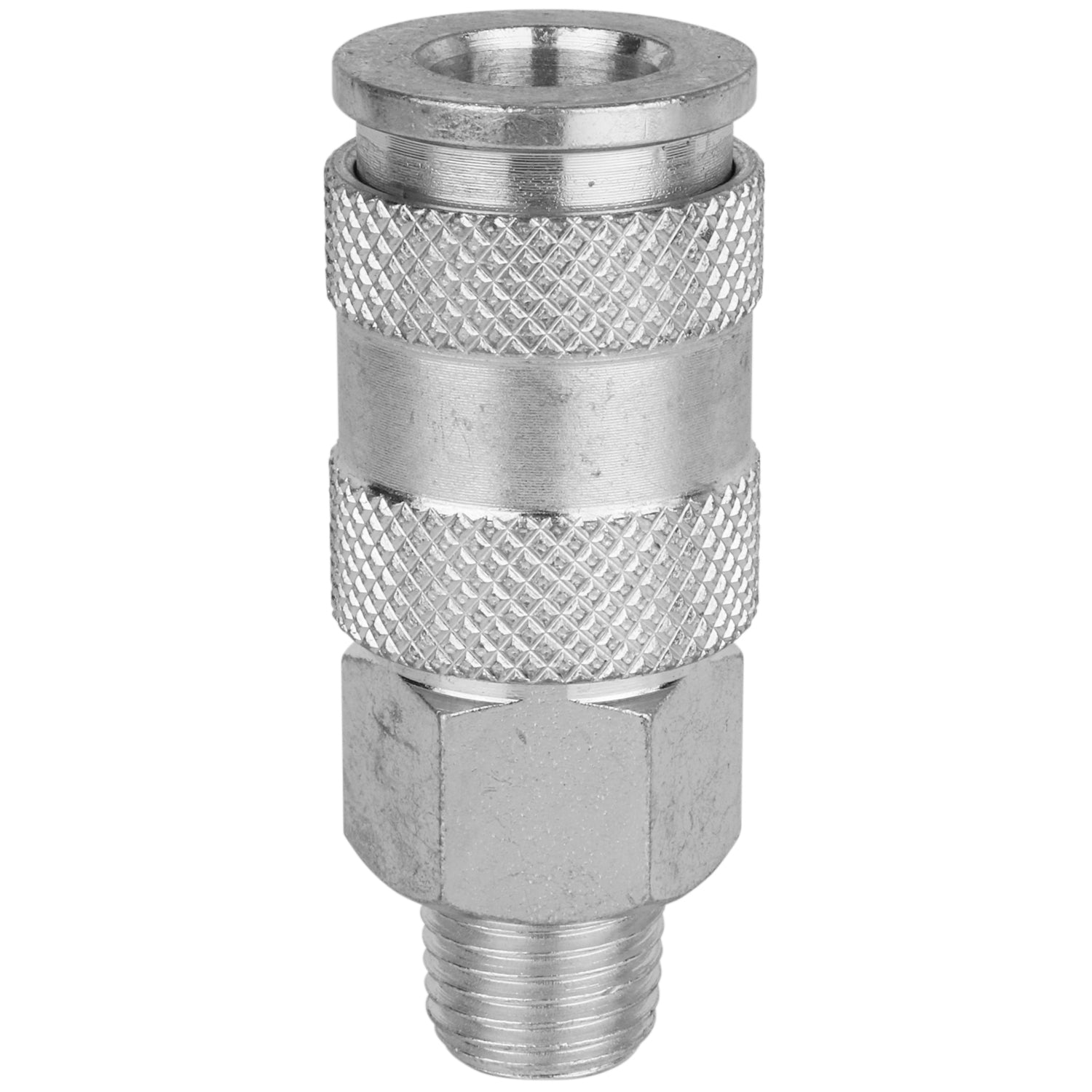

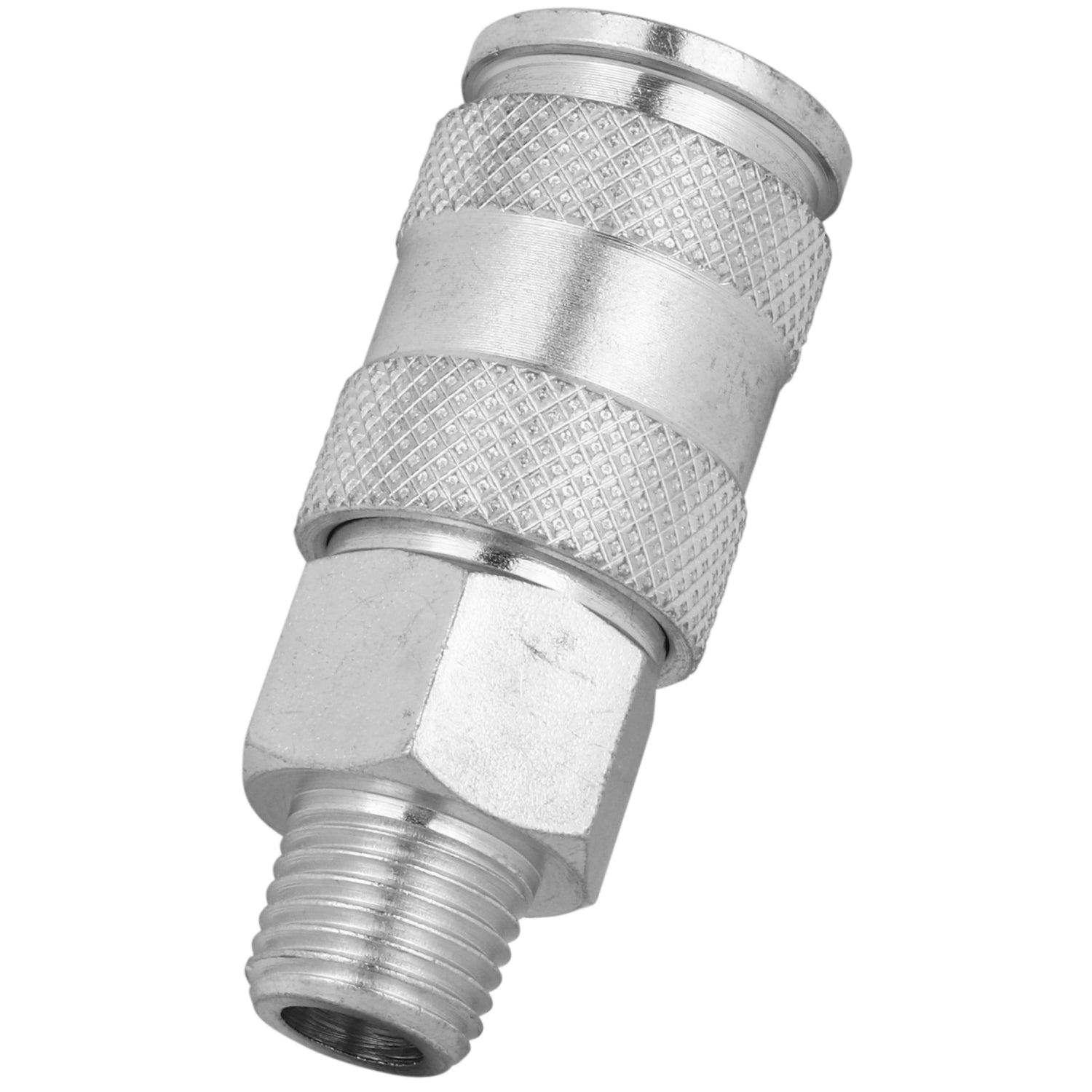

765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100
765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100 765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100 765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100

765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100

$1,044.00
/
Shipping calculated at checkout.

Milton®s industrial (V-style) quick-connect couplers are made of heavy-duty steel which is ideal for applications requiring a durable and long lasting pneumatic coupler. These high flow 1/4" Male NPT V-Style couplers have a push-type sleeve release. Simply push plug into coupler to engage; Pull the sleeve release back to remove. Perfect for high volume, low pressure applications. ¼" basic flow size and 300 PSI max pressure. Milton V-Style couplers will also accept M-Style® and A-Style plugs. However, V-Style plugs are recommended to retain maximum flow.

Back to Products
765STBK - Milton® 1/4
765STBK - Milton® 1/4
765STBK - Milton® 1/4
Save:
765STBK - Milton® 1/4
765STBK - Milton® 1/4
765STBK - Milton® 1/4

765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100

ZeeLine by Milton®

Part #: 765STBK

Features:

  • IDEAL: For High Volume, Low Pressure pneumatic applications - 70% More Air
  • V-STYLE: Milton V-style, ColorFit V-style, + competitor V couplers/plugs are all compatible!
  • COMPATIBLE: Will also accept both M-Style® and A-Style plugs. V-style is recommended to retain maximum flow
  • EASY TO USE MILTON AIR FITTINGS: Simply push plug into coupler to engage, and then pull sleeve back to remove

Specifications:

  • Maximum Pressure: 300 PSI “ 40 SCFM
  • 1/4" NPT - Male
  • Compliant with military specification MIL-C-4109
  • Box of 100
$1,044.00
Save:

Quantity

Shipping calculated at checkout.

765STBK - Milton® 1/4" MNPT High Flow (V-Style) Quick-Connect Steel Coupler - Box of 100

Milton®s industrial (V-style) quick-connect couplers are made of heavy-duty steel which is ideal for applications requiring a durable and long lasting pneumatic coupler. These high flow 1/4" Male NPT V-Style couplers have a push-type sleeve release. Simply push plug into coupler to engage; Pull the sleeve release back to remove. Perfect for high volume, low pressure applications. ¼" basic flow size and 300 PSI max pressure. Milton V-Style couplers will also accept M-Style® and A-Style plugs. However, V-Style plugs are recommended to retain maximum flow.

Type of Hose :
Type of fiiting :
Thread Size :
SCFM :
PSI range :

Milton®s industrial (V-style) quick-connect couplers are made of heavy-duty steel which is ideal for applications requiring a durable and long lasting pneumatic coupler. These high flow 1/4" Male NPT V-Style couplers have a push-type sleeve release. Simply push plug into coupler to engage; Pull the sleeve release back to remove. Perfect for high volume, low pressure applications. ¼" basic flow size and 300 PSI max pressure. Milton V-Style couplers will also accept M-Style® and A-Style plugs. However, V-Style plugs are recommended to retain maximum flow.

Specifications:

  • Maximum Pressure: 300 PSI “ 40 SCFM
  • 1/4" NPT - Male
  • Compliant with military specification MIL-C-4109
  • Box of 100
